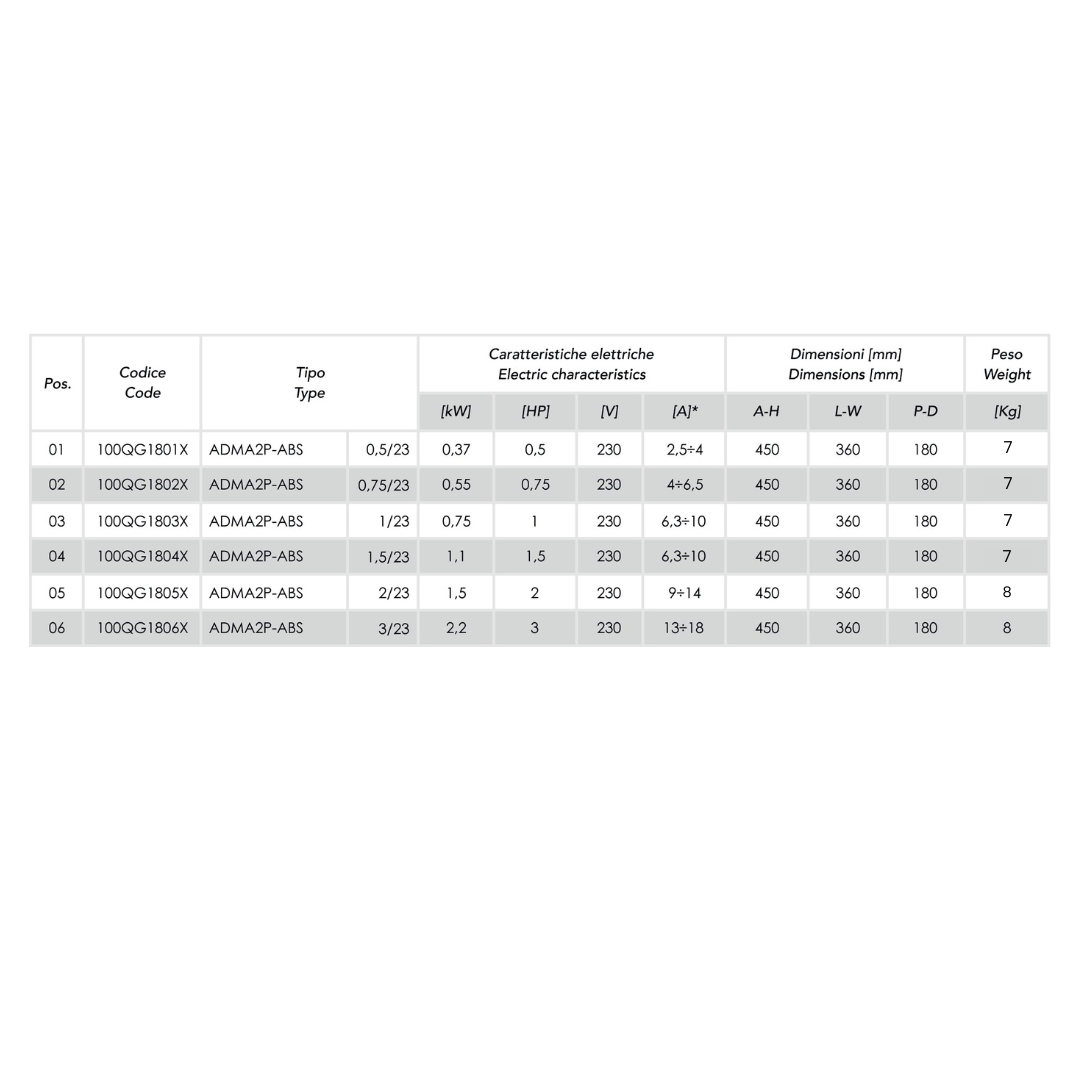

ADMA2P-ABS

Single-phase automatic direct starter for 2 electric motors

COMPOSITION:

  • ABS box (type V0)
  • Door interlock switch disconnector
  • Fuses for each electric motor
  • 2 contactors
  • 2 thermal relays
  • 400-230/24V safety transformer for auxiliary circuit
  • Protective fuses for transformer and auxiliary circuit
  • 2 green warning lights (run)
  • 2 red warning lights (overload)
  • 2 AUT-0-MAN selector switches
  • Control unit for alternation of 2 electric motors
  • Terminal board (Motor output, arrangement for float or pressure switch)
  • Cable clamps
  • 2 fixing brackets
  • Instruction manual

TECHNICAL FEATURES:

  • Power supply voltage 230 Vac ±10%
  • Operating frequency 50/60 Hz
  • Protection degree IP55
  • Operating temperature -5 /+40°C
  • 3 very low voltage inputs for pressure switches or float switches (clear contacts)
Ask question or quote

PRODUCTS TYPOLOGY

ELECTRO-MECHANICAL DIRECT STARTERS

CATEGORY OF USE

AGRICULTURE
CIVIL USE

TECHNOLOGY

ELECTRO-MECHANICAL

CABINET MATERIAL

PVC

CAPACITOR

NO

IGNITION TYPOLOGY

AUT-O-MAN SELECTOR SWITCH

METERS

NO

PROTECTION

THERMAL RELAY

DOOR INTERLOCK SWITCH DISCONNECTOR

YES

PHASES

230V SINGLE PHASE – 230V SINGLE PHASE

NO. ENGINES

2

DISPLAY

NO

DRY RUNNING CONTROL

NO

PRESSURE TRANSDUCER

NO

POWERS (HP)

0,5
0,75
1
1,5
2
3

WIRED ACCESSORIES (OPTIONAL)

WATER LEVEL ELECTROPROBE, ELSOND-B TYPE + 3 TERMINALS
WATER LEVEL ELECTROPROBE, ELSOND-SV TYPE + 3 TERMINALS
WATER LEVEL ELECTROPROBE, ELSOND-RSV TYPE + 3 TERMINALS
DAILY ANALOG TIMER WITH BATTERY
DAILY ANALOG TIMER WITHOUT BATTERY
WEEKLY DIGITAL TIMER
HOUR METER
START-STOP PUSH BUTTONS
SAUT-O-MAN KEY SELECTOR SWITCH
TIMER RELAY
VOLTMETER
AMMETER
CURRENT TRANSFORMER
FREQUENCY COUNTER
VOLTMETER SELECTOR SWITCH + 3 FUSES
ALARM CIRCUIT WITH FLASHING SIREN
ALARM CIRCUIT WITH FLASHING SIREN AND BACKUP BATTERY
SEWAGE WATER KIT WITH RELAY AND 4 AUXILIARY TERMINALS
STATUS SIGNAL RELAY WITH 3 AUXILIARY TERMINALS
IRRIGATION KIT
REMOTE CONTROL WITH ANTENNA AND REMOTE CONTROL DEVICE, MAX 150 M
REMOTE CONTROL WITH ANTENNA AND REMOTE CONTROL DEVICE, MAX 700 M
REMOTE CONTROL WITH COMPLETE GSM MODULE – SMS COMMAND BY MOBILE PHONE
WIRED CAPACITOR 16ΜF
WIRED CAPACITOR 20ΜF
WIRED CAPACITOR 30ΜF
WIRED CAPACITOR 40ΜF
WIRED CAPACITOR 50ΜF
WIRED CAPACITOR 70ΜF
